SA Towers
General Use of SA Towers
The three-legged angular self-supporting SA-series towers offer a low-cost solution to use in normal space with minimum weight and a wide variety usage in hub & mobile sites. SA tower is suitable to utilize for all types of GSM, UHF, ... Antennas.
Design
- Designed on TIA/ EAi 222-F standard
- Designed up to 54m height with light and medium loading
- Low diversity of separate members
- Wide variety of accessories that can be easily mounted cit any stages
- Vertical rack feeders are connected to ladder which caused easy access
Accessories
- Working and rest platform
- Vertical rack feeders are connected to ladder which caused easy access
- Lightening protection kit
- Horizontal rack feeder
- Positioning template
- Lighting package
Documentation
- Packing list
- Installation manual
- Foundation drawing
| SA Series Tower | SF Series Tower | SG Series Tower |
|---|---|---|
|
SA 54m Tower |
SF 54m Tower |
SG 72m Tower |
|
SA 48m Tower |
SF 48m Tower |
SG 66m Tower |
|
SA 42m Tower |
SF 42m Tower |
SG 60m Tower |
|
SA 36m Tower |
SF 36m Tower |
SG 54m Tower |
|

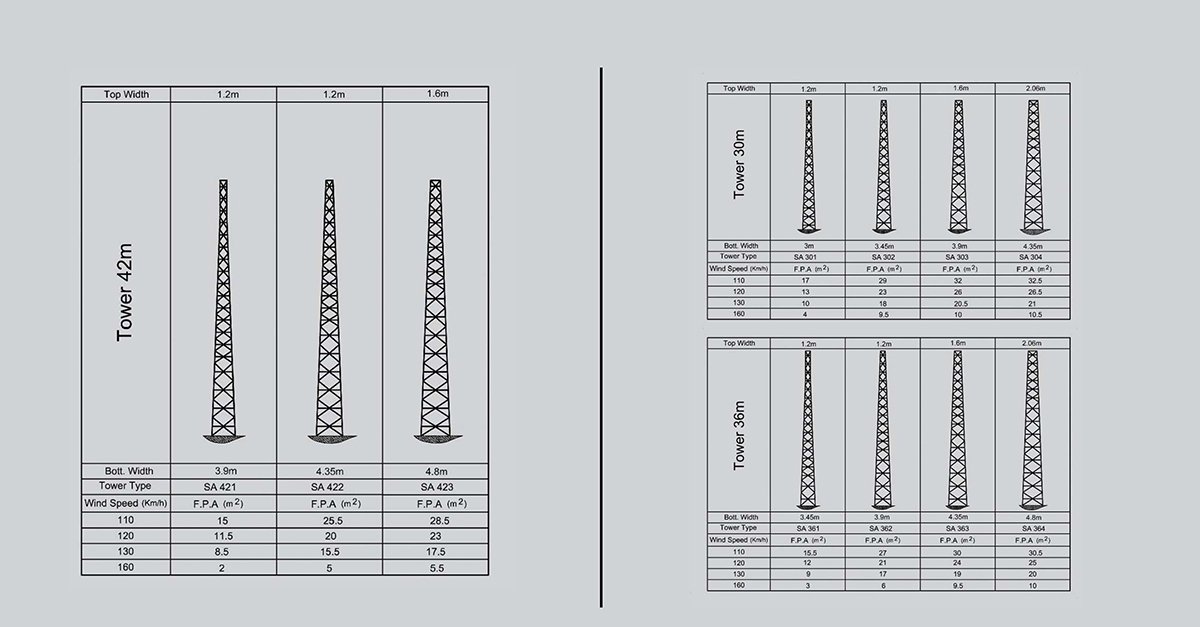

Tower’s Load Capacity |
SF 30m Tower |
Tower’s Load Capacity |
|
Tower’s Load Capacity |
Tower’s Load Capacity |
|
Materials and Anchoring:
- All members are hot rolled angles (Legs ST52, Braces and plates ST37)
- Anchor bolts (Alli) used with leveling nuts and positioning template
Connections
- All bolts are 8.8 grade (DIN933) with flat, spring washers and nuts
Galvanizing
- All materials are hot-dip galvanized on ASTM A 123 standard
Ladder Construction
- Enough space for easy movement inside tower
- Cage or open ladder with safety climbing line
Technical Details
- SA tower designed for 120 km/h wind
- FPA of SA tower is 10 ~ l 2m2
- Ice thickness is 12 mm
